Vlier
3/8-16 in Spring Plunger - Vlier PRT375
MFR# PRT375
$12.98List $16.30
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

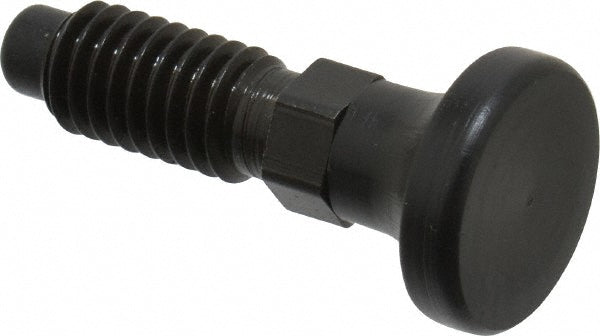

The Vlier PRT375 is a 3/8-16 in steel spring plunger.
Specifications
Body length0.9400
Final end force2lb
Final end force lb2.00
FinishBlack
Head diameter0.75in
Head shoulder height0.6500
Hex size in3/8
Initial end force0.25lb
Initial end force lb0.25
Knob styleDelrin
Length under head shoulder0.7500
Locking elementNo
MaterialSteel
Maximum plunger diameter0.2500
Plunger length1.4000
Plunger projection0.1800
Plunger typeNon-Locking
Thread length0.75in
Thread size3/8-16 in
