Vlier
M10 x 1.5 Spring Plunger - Vlier SBML10
MFR# SBML10
$6.33List $7.94
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

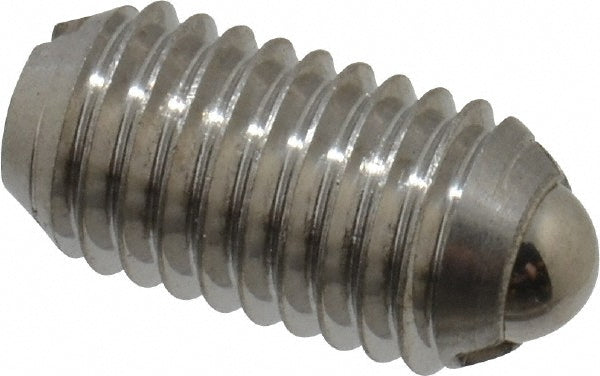

The Vlier SBML10 is a M10 x 1.5 stainless steel spring plunger.
Specifications
ApplicationControlled End Force; Side-Load Tolerant; Smallest & Lightest Spring-Loaded Device
Ball diameter0.2360
Ball materialStainless Steel
Body length0.7480
Body materialStainless Steel
Color codePurple
Final end force lb3.37
Final end force n15.00
Initial end force lb1.80
Initial end force n8.00
Locking elementNo
Maximum ball reach0.0790
Thread pitch1.5mm
Thread sizeM10 x 1.5
