Vlier

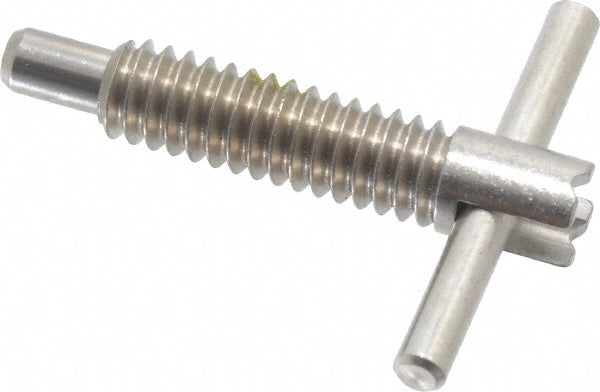

1/4-20 in; 1/4-20 Spring Plunger - Vlier SFRT250P
MFR# SFRT250P
$20.18List $25.33
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SFRT250P is a 1/4-20 in; 1/4-20 stainless steel spring plunger.
Specifications
Body length1.0000
Body materialStainless Steel
Extended nose length0.25in
Final end force lb2.50; 2.5lb
Handle diameter0.13in
Handle length1.1300
Handle width diameter0.1300
Initial end force lb1.00; 1lb
Locking elementYes
Plunger diameter0.155in
Plunger length1.1400
Plunger projection0.2500
Thread length (mm)0.8in
Thread size1/4-20 in; 1/4-20
