Vlier
10-32 Spring Plunger - Vlier SL190
MFR# SL190
$13.04List $16.37
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

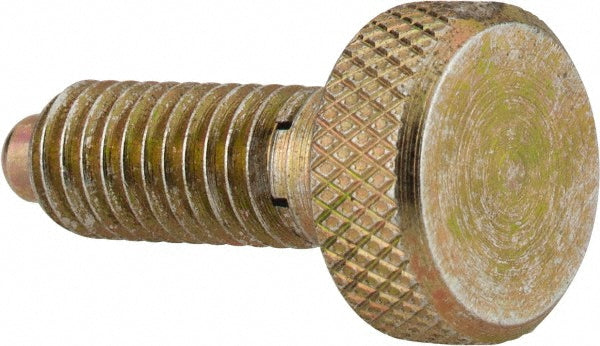

The Vlier SL190 is a 10-32 steel spring plunger.
Specifications
Body length0.4600
Final end force3lb
Final end force lb3.00
FinishZinc Gold Chromate
Head diameter0.38in
Head height0.19in
Head shoulder height0.2500
Initial end force0.5lb
Initial end force lb0.50
Knob styleKnurled
Length under head shoulder0.4000
Locking elementNo
MaterialSteel
Maximum plunger diameter0.1040
Plunger diameter tolerance+0.001/-0.000
Plunger length0.6500
Plunger projection0.0940
Plunger typeNon-Locking
Thread length0.4in
Thread size10-32
