Vlier

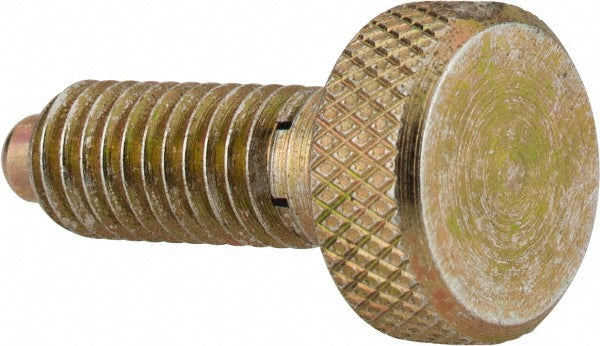

1/4-20 in Spring Plunger - Vlier SL250P
MFR# SL250P
$11.35List $14.24
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SL250P is a 1/4-20 in steel spring plunger.
Specifications
Body length0.7900
Final end force4lb
Final end force lb4.00
FinishZinc Gold Chromate
Head diameter0.5in
Head height0.19in
Head shoulder height0.3130
Initial end force1lb
Initial end force lb1.00
Knob styleKnurled
Length under head shoulder0.5000
Locking elementYes
MaterialSteel
Maximum plunger diameter0.1230
Plunger diameter tolerance+0.001/-0.000
Plunger length0.8130
Plunger projection0.1250
Plunger typeNon-Locking
Thread length0.5in
Thread size1/4-20 in
