Vlier
Spring Plunger - Vlier SLFM6P
MFR# SLFM6P
$12.26List $15.18
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

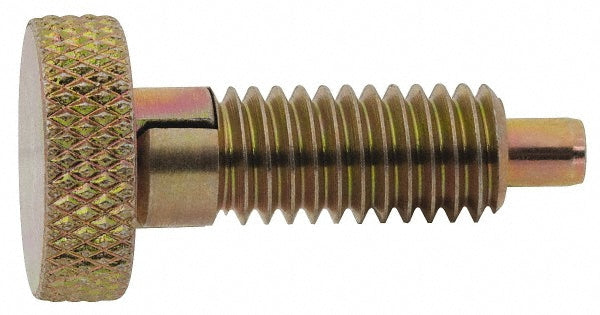

The Vlier SLFM6P is a spring plunger.
Specifications
Body length (mm)10.00
Final end force lb2.00
Final end force n8.90
Head diameter0.5000
Head height0.2700
Hex size (mm)6.00
Initial end force lb0.50
Initial end force n2.22
Knob styleKnurled
Length under head shoulder0.5300
Locking elementYes
Maximum plunger diameter0.1200
Plunger length0.8000
Plunger projection0.1300
Plunger typeLocking
Thread length0.4000
