Vlier

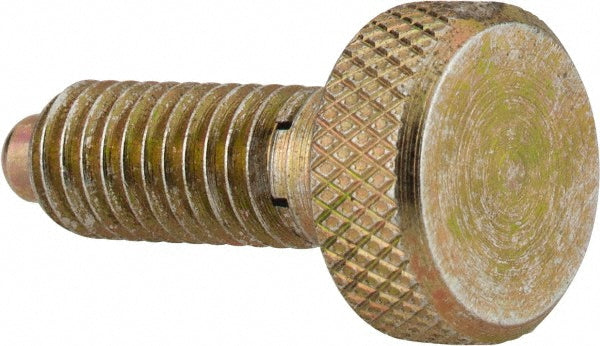

M10x1.5 Spring Plunger - Vlier SLM10
MFR# SLM10
$14.94List $18.75
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SLM10 is a M10x1.5 steel spring plunger.
Specifications
Body length0.9500
Final end force35.6N; 8lb
Final end force lb8.00
Final end force n35.60
FinishZinc Gold Chromate
Head diameter0.748in; 19mm
Head height0.315in; 8mm
Head shoulder height0.5120
Initial end force4.45N; 1lb
Initial end force lb1.00
Initial end force n4.45
Knob styleKnurled
Length under head shoulder0.7480
Locking elementNo
MaterialSteel
Maximum plunger diameter0.1900
Plunger diameter tolerance+0.000/-0.001
Plunger length1.2600
Plunger projection0.2360
Plunger typeNon-Locking
Thread length0.748in; 19mm
Thread sizeM10x1.5
