Vlier

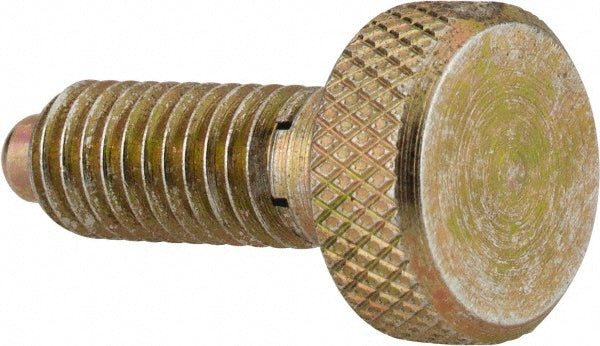

Spring Plunger - Vlier SLM5P
MFR# SLM5P
$35.35List $43.81
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SLM5P is a spring plunger.
Specifications
Body length0.4700
Final end force lb3.00
Final end force n13.34
Head diameter0.3550
Head height0.1570
Head shoulder height0.2360
Initial end force lb0.50
Initial end force n2.22
Knob styleKnurled
Length under head shoulder0.3940
Locking elementYes
Maximum plunger diameter0.0984
Plunger diameter tolerance+0.000/-0.001
Plunger length0.6300
Plunger projection0.0780
Plunger typeNon-Locking
Thread length0.3940
