Vlier

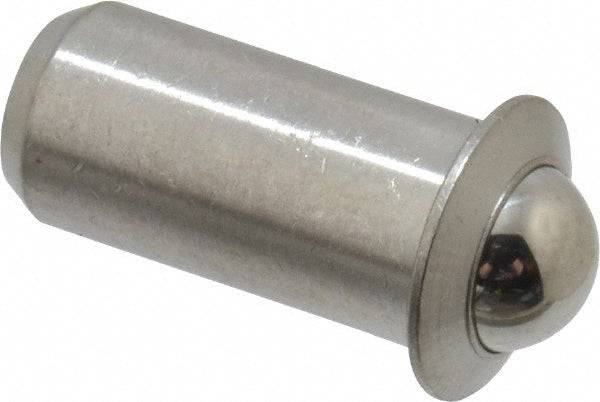

Spring Plunger - Vlier SPFB58
MFR# SPFB58
$4.15List $5.20
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SPFB58 is a stainless steel spring plunger.
Specifications
Ball diameter0.1560
Ball materialStainless Steel
Body diameter0.3750
Body length0.0786
Body materialStainless Steel
Final end force lb14.00
FinishPassivate
FlangeYes
Flange diameter0.5000
Flange thickness0.0780
Initial end force lb5.00
Length under flange0.7860
Locking elementNo
Maximum ball reach0.1100
Tolerance (mm)+0.002
