Vlier

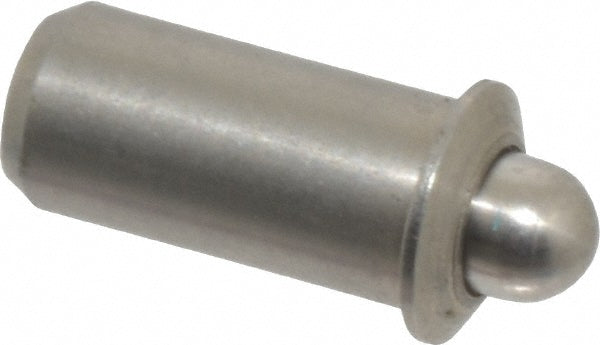

Spring Plunger - Vlier SPFP54
MFR# SPFP54
$3.66List $4.59
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SPFP54 is a stainless steel spring plunger.
Specifications
ApplicationLight End Force
Body diameter0.2500; 0.25in
Body length0.521in; 0.5210
Body materialStainless Steel
Final end force lb6.00; 6lb
Flange diameter0.312in
Flange thickness0.0550
Initial end force lb2.50; 2.5lb
Length under flange0.5210
Locking elementNo
Nose diameter0.168in
Nose materialStainless Steel
Plunger diameter0.168in
Plunger length0.5760
Plunger projection0.1250
