Vlier
1/2-13 in Spring Plunger - Vlier SPRSN500
MFR# SPRSN500
$21.35List $26.80
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

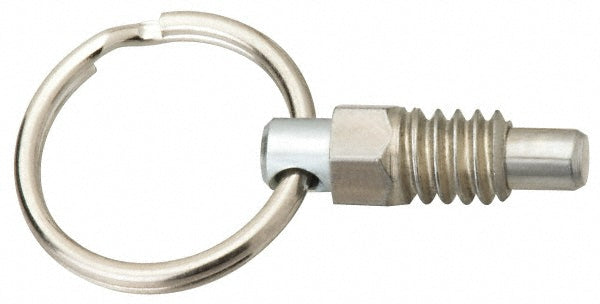

The Vlier SPRSN500 is a 1/2-13 in stainless steel spring plunger.
Specifications
Body length0.8100
Final end force4lb
Final end force lb4.00
Head height0.25in
Hex size0.5000
Initial end force1lb
Initial end force lb1.00
Length under head0.5600
Locking elementNo
MaterialStainless Steel
Plunger diameter0.31in
Plunger length1.0600
Plunger projection0.3800
Plunger typeNon-Locking
Ring diameter1.0000
Thread length0.41in
Thread size1/2-13 in
