Vlier

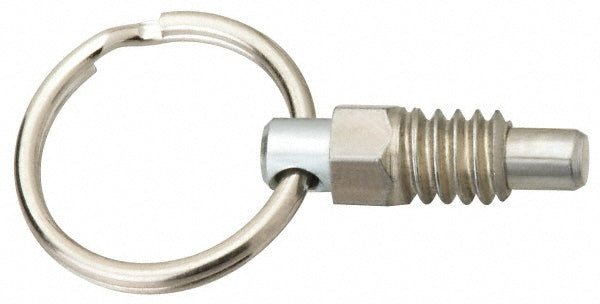

M16x2.0 Spring Plunger - Vlier SPRSNM16P
MFR# SPRSNM16P
$23.15List $29.07
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SPRSNM16P is a M16x2.0 stainless steel spring plunger.
Specifications
Body length1.0000
Final end force22.2N; 5lb
Final end force lb5.00
Head height0.31in; 7.87mm
Hex size16mm
Initial end force5.6N; 1.25lb
Initial end force lb1.25
Length under head0.6900
Locking elementYes
MaterialStainless Steel
Plunger diameter0.38in; 10mm
Plunger length1.3100
Plunger projection0.4400
Plunger typeNon-Locking
Ring diameter1.0000
Thread length0.56in; 14.22mm
Thread sizeM16x2.0
