Vlier

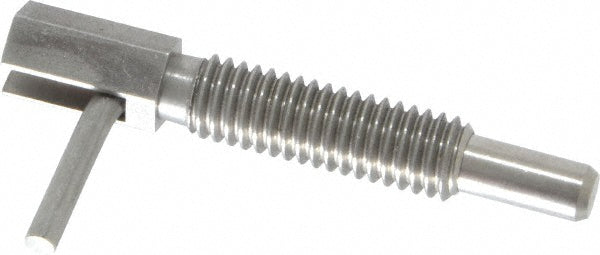

3/8-16 in Spring Plunger - Vlier SSFR375
MFR# SSFR375
$15.06List $18.91
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SSFR375 is a 3/8-16 in spring plunger.
Specifications
Body length2.0000
Final end force3.75lb
Final end force lb3.75
Handle diameter0.1400
Handle length0.7500
Handle materialStainless Steel
Head height0.69in
Hex size0.3800
Initial end force0.75lb
Initial end force lb0.75
Length between head and thread0.130
Length between head thread0.13in
Length under head1.3100
Locking elementNo
Plunger diameter0.25in
Plunger length2.0000
Plunger projection0.5600
Plunger typeLocking
Thread length1.18in
Thread size3/8-16 in
