Vlier

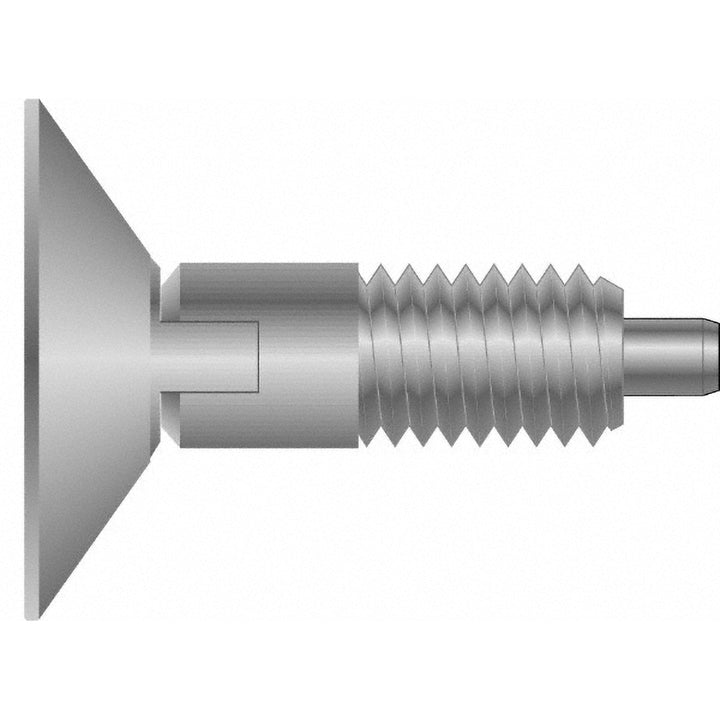

M6x1.0 Spring Plunger - Vlier SSLRM6P
MFR# SSLRM6P
$18.78List $23.57
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SSLRM6P is a M6x1.0 stainless steel spring plunger.
Specifications
Body length10mm
Body length (mm)10.00
Final end force17.79N; 4lb
Final end force lb4.00
Final end force n17.79
FinishZinc Gold Chromate
Head diameter0.75in; 19.05mm
Hex size3mm
Hex size (mm)3.00
Initial end force4.45N; 1lb
Initial end force lb1.00
Initial end force n4.45
Knob styleCountersunk
Locking elementYes
MaterialStainless Steel
Maximum plunger diameter0.1200
Plunger length0.8000
Plunger projection0.1300
Plunger typeLocking
Thread length0.4in; 10.16mm
Thread sizeM6x1.0
