Vlier

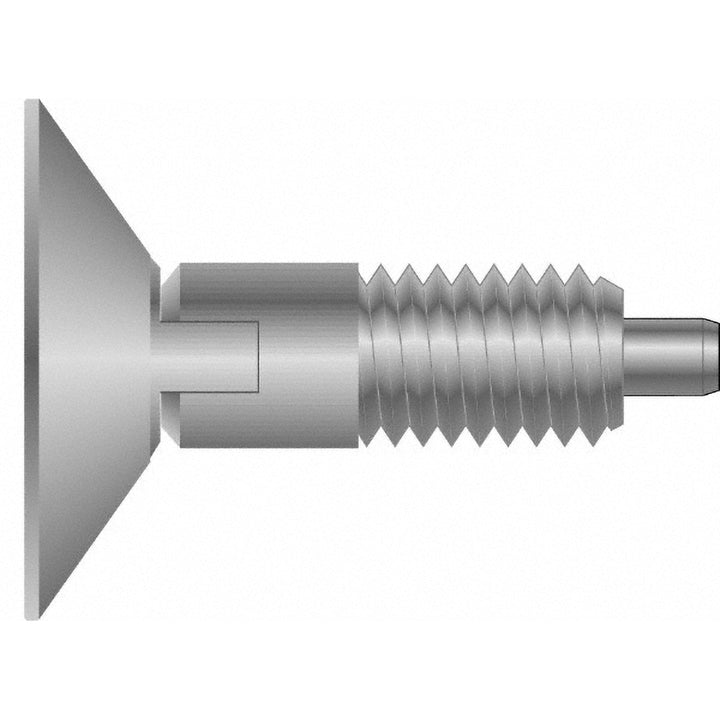

M8x1.25 Spring Plunger - Vlier SSLRM8
MFR# SSLRM8
$17.76List $22.30
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SSLRM8 is a M8x1.25 stainless steel spring plunger.
Specifications
Body length13.5mm
Body length (mm)13.50
Final end force26.69N; 6lb
Final end force lb6.00
Final end force n26.69
FinishZinc Gold Chromate
Head diameter0.88in; 22.35mm
Hex size3mm
Hex size (mm)3.00
Initial end force4.45N; 1lb
Initial end force lb1.00
Initial end force n4.45
Knob styleCountersunk
Locking elementNo
MaterialStainless Steel
Maximum plunger diameter0.1500
Plunger length1.1000
Plunger projection0.1900
Plunger typeLocking
Thread length0.53in; 13.46mm
Thread sizeM8x1.25
