Vlier

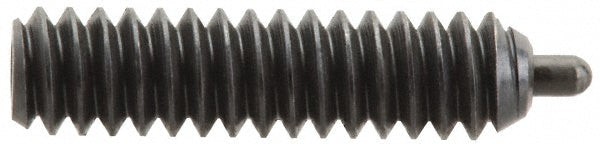

#6-32 Spring Plunger - Vlier SSPH49P
MFR# SSPH49P
$7.20List $9.03
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Vlier SSPH49P is a #6-32 stainless steel spring plunger.
Specifications
Body length in17/32
Body materialStainless Steel
Final end force lb1.50
Hex size0.0630
Initial end force lb0.50
Locking elementYes
Maximum plunger diameter0.0450
Middle end force1.00
Minimum plunger diameter0.0440
Nose materialStainless Steel
Plunger length in17/32
Plunger length typeStandard
Plunger projection in1/16
Thread length in17/32
Thread size#6-32
