Vlier
#10-32 Spring Plunger - Vlier SSPH52
MFR# SSPH52
$6.28List $7.89
Save 20%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

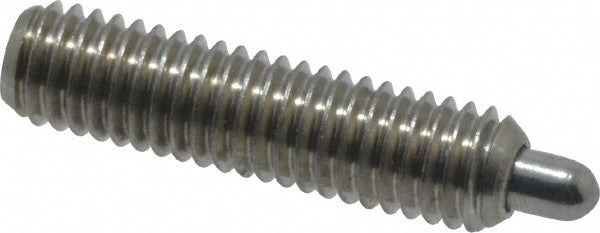

The Vlier SSPH52 is a #10-32 stainless steel spring plunger.
Specifications
Body length in3/4
Body materialStainless Steel
Final end force lb11.10
Hex size0.0630
Initial end force lb2.90
Locking elementNo
Maximum plunger diameter0.0920
Middle end force7.00
Minimum plunger diameter0.0910
Nose materialStainless Steel
Plunger length in3/4
Plunger length typeStandard
Plunger projection in1/8
Thread length in3/4
Thread size#10-32
