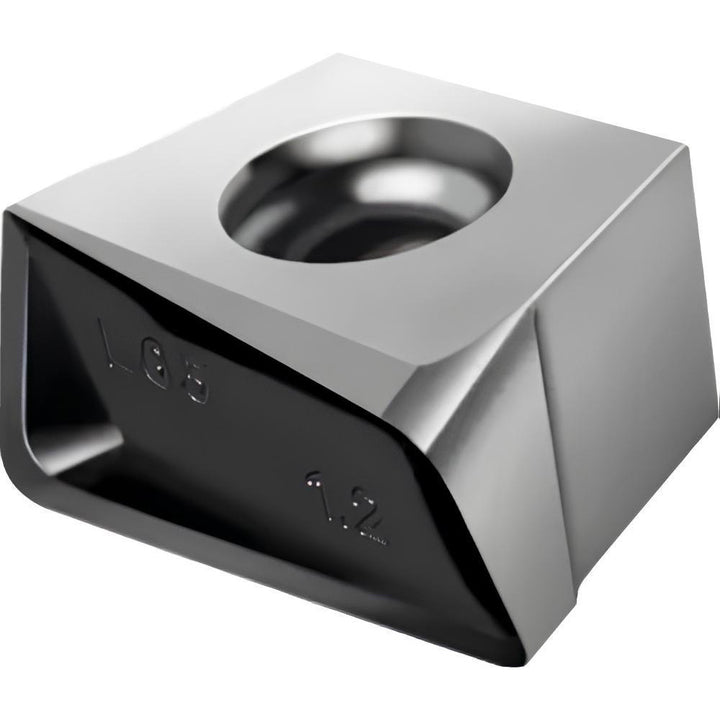

XNHX130616R-L65T WSM45X Solid Carbide Insert, Grade WSM45X, TiCN - Walter 6948577

Walter

XNHX130616R-L65T WSM45X Solid Carbide Insert, Grade WSM45X, TiCN - Walter 6948577

MFR# 6948577ISO/ANSI# XNHX130616R-L65T WSM45XCat# XNHX130616R-L65TSeries XNHX

$58.36List $74.85 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeParallelogram
GradeWSM45X
MaterialSolid Carbide
CoatingTiCN

Description

The Walter 6948577 is a XNHX130616R-L65T WSM45X solid carbide indexable insert, grade WSM45X, TiCN coated. Suited for stainless steel, superalloys & titanium.

Specifications

Ansi codeXNHX130616R-L65T WSM45X
Chip breakerL65T
Coating finishTiCN
Coating processCVD
Corner radius0.0630
Cutter series compatibilityM3255
Cutting edge styleHoned
Included angle degree90
Inscribed circle0.2680
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size13
Insert size code130616
Insert styleXNHX
Iso codeXNHX130616R-L65T WSM45X
Length0.5510
Length range0.5000 to 0.6000
Manufacturers catalog numberXNHX130616R-L65T
Manufacturer gradeWSM45X
Material applicationStainless Steel; Superalloys & Titanium
Material gradeS45; M45
Maximum depth of cut0.5510
Multi use toolYes
Number of cutting edges2
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle28
Relief angle0.00
Single or double sided insertSingle
StandardsANSI; ISO
Thickness0.2680
Thickness range0.2500 to 0.3500
Width0.4130
