Walter

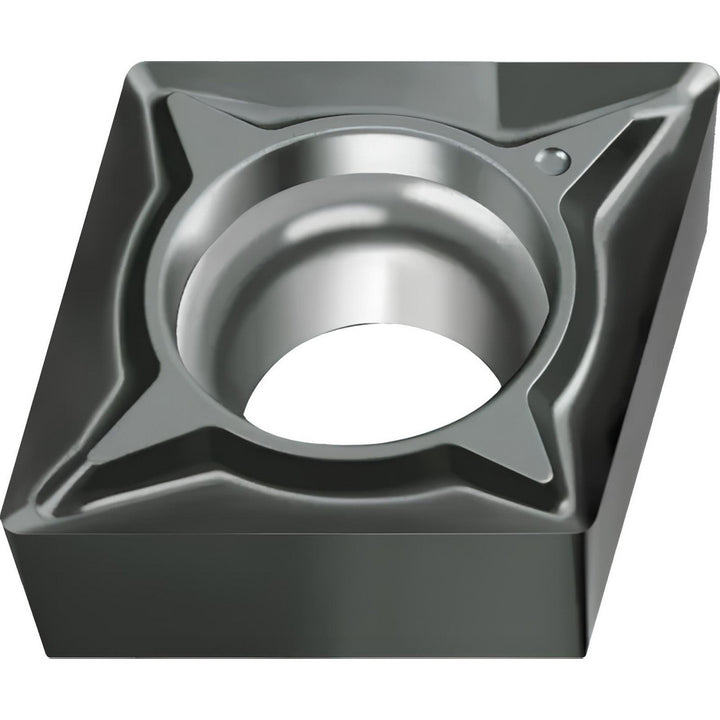

CCGT060202-FN2 WNN10 Carbide Insert, Grade WNN10, TiAlN - Walter 6955641
MFR# 6955641ISO/ANSI# CCGT060202Series CCGT-FN2
$21.22List $27.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeWNN10
MaterialCarbide
CoatingTiAlN
Description
The Walter 6955641 is a CCGT060202-FN2 WNN10 carbide indexable insert, grade WNN10, TiAlN coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCGT21.50.5
Ansi size code21.50.5
Chip breakerFN2
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1100
Included angle80
Industry standard numberCCGT2(1.5)0.5-FN2 WNN10
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2540
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202-FN2 WNN10
Iso insert codeCCGT060202
Iso size code060202
Lead angle80
Length range0.0000 - 0.3000
Manufacturers catalog number6955641
Manufacturer gradeWNN10
Material gradeN10; P01; M01
Maximum depth of cut0.2540
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle18
Relief angle7
Secondary workpiece materialSteel; Stainless Steel
Side clearancePositive
StandardsANSI; ISO
Tolerance codeG
Width0.2540
Wiper edgeNo
