Walter-Prototyp

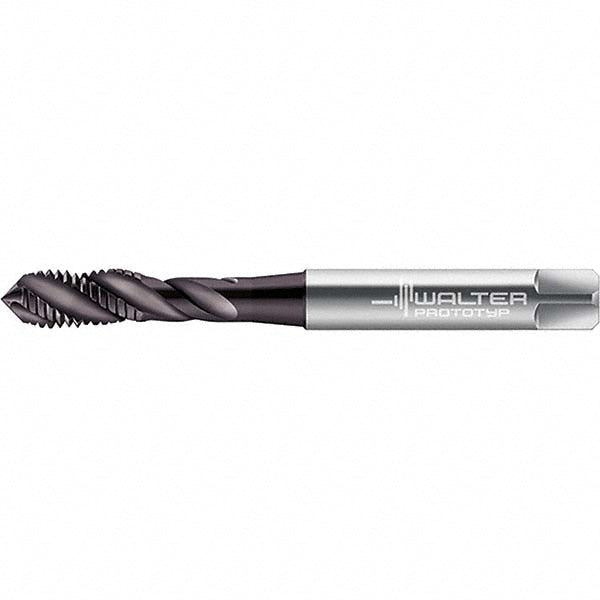

M4x0.70 Metric Powdered Metal Tap, Proprietary - Walter-Prototyp 6245535
MFR# 6245535Series EP2051302
$61.30List $78.62
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
CoatingProprietary
Description
The Walter-Prototyp 6245535 is a Metric Powdered Metal tap with a Proprietary finish. 3 flutes.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit6HX
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.3071
Number of flutes3
Overall length2.4803
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.1772
Square length0.2360
Square size0.1340
Tapping depth0.5827
Thread directionRight Hand
Thread length0.2756
Thread pitch (mm)0.70
Thread size (mm)M4x0.70
Thread standardMetric
