Walter-Prototyp

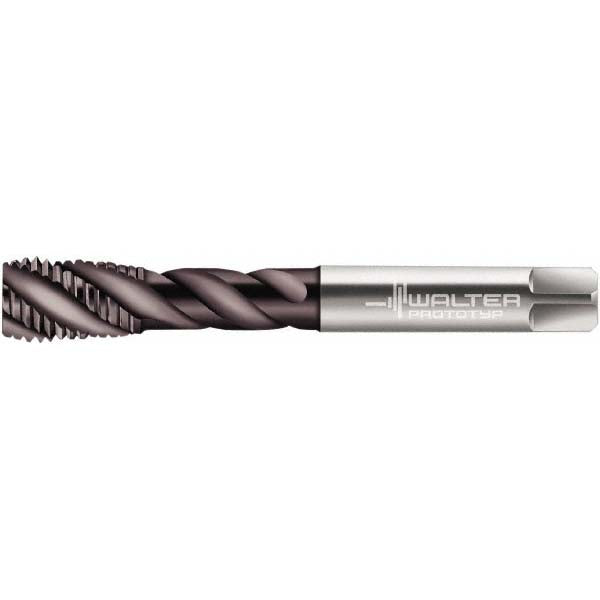

M12x1.75 Metric Powdered Metal Tap, Proprietary - Walter-Prototyp 6245560
MFR# 6245560Series EP2056302
$138.94List $178.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
CoatingProprietary
Description
The Walter-Prototyp 6245560 is a Metric Powdered Metal tap with a Proprietary finish. 4 flutes.
Specifications
ChamferModified Bottoming
Class of fit6HX
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length1.0236
Number of flutes4
Overall length4.3307
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3543
Tapping depth1.6535
Thread directionRight Hand
Thread length0.6299
Thread size (mm)M12x1.75
Thread standardMetric
