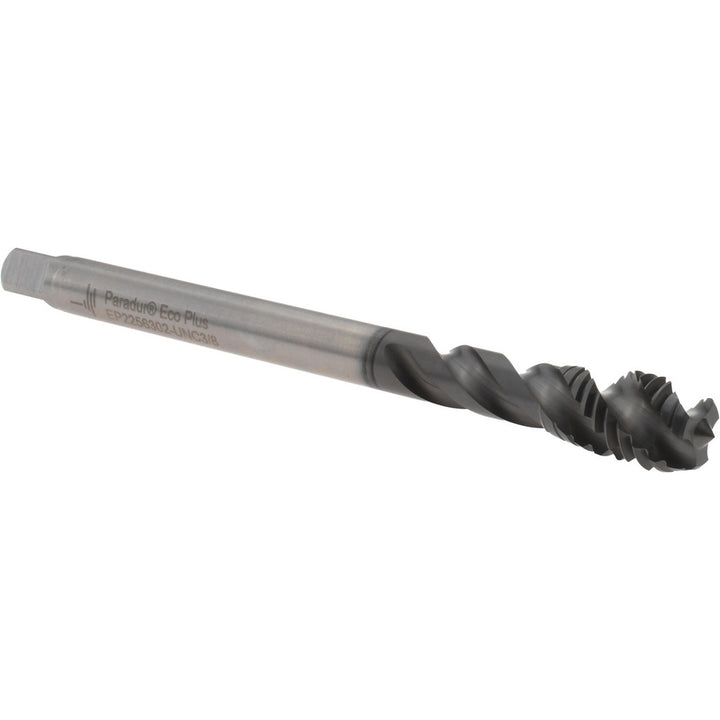

3/8-16 UNC Powdered Metal Tap, Hardlube - Walter-Prototyp 6245675

Walter-Prototyp

3/8-16 UNC Powdered Metal Tap, Hardlube - Walter-Prototyp 6245675

MFR# 6245675Series EP2256302

$112.84List $144.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingHardlube

Description

The Walter-Prototyp 6245675 is a 3/8-16 UNC Powdered Metal tap with a Hardlube finish. 3 flutes.

Specifications

ApplicationBlind Hole Threading
ChamferModified Bottoming
Class of fit2B
Coating finishHardlube
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.9449
Number of flutes3
Overall length3.9370
OversizeNo
Shank diameter0.2756
Square length0.3150
Square size0.2170
Tapping depth1.5354
Threads per inch16
Thread directionRight Hand
Thread length0.5906
Thread size in3/8-16
Thread standardUNC
