Walter-Prototyp

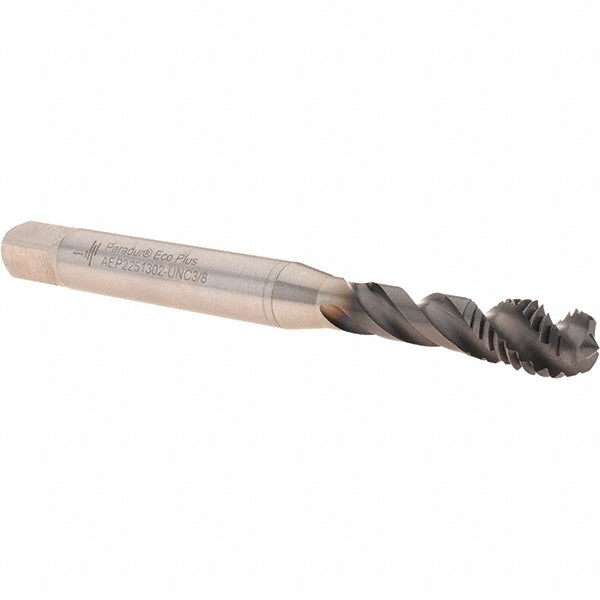

3/8-16 UNC Powdered Metal Tap, Proprietary - Walter-Prototyp 6245711
MFR# 6245711Series AEP2251302
$112.84List $144.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingProprietary
Description
The Walter-Prototyp 6245711 is a 3/8-16 UNC Powdered Metal tap with a Proprietary finish. 3 flutes.
Specifications
ChamferModified Bottoming
Class of fit2B
Coating finishProprietary
Coolant throughNo
Flute directionRight Hand
Flute styleFast
Helix angle45
MaterialPowdered Metal
Material applicationAluminum; Cast Steel; Gray Cast Iron; Malleable Cast Iron; Non-Ferrous Metal; Spheroidal Cast Iron; Stainless Steel; Steel; Vermicular Cast Iron
Neck length0.9440
Number of flutes3
Overall length3.9370
OversizeNo
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.3810
Tapping depth1.5350
Thread directionRight Hand
Thread length0.5910
Thread size in3/8-16
Thread standardUNC
