1/4-20 UNC HSS-E Spiral Point Tap, TiAlN - Walter-Prototyp 7557160
MFR# 7557160Series TC217
$59.64List $73.92
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiAlN
Description

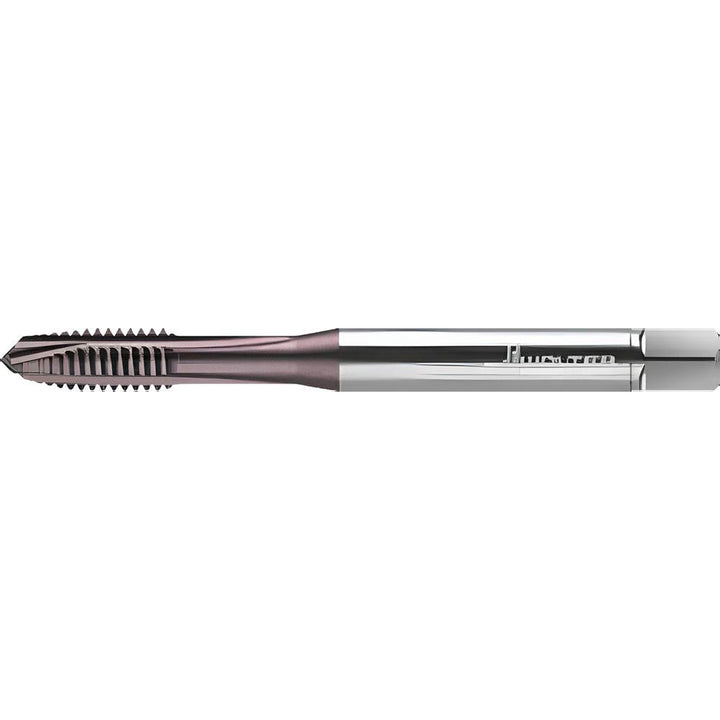

The Walter-Prototyp 7557160 is a 1/4-20 UNC HSS-E Spiral Point tap with a TiAlN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiAlN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material gradeWY80RG
Measurement typeDecimal Inch
Neck length0.5900
Number of flutes3
Overall length3.15
OversizeNo
Shank diameter0.2550
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length0.5910
Thread pitch0.05
Thread size in1/4-20
Thread standardUNC
