Walter-Prototyp
1/4-20 UNC HSS-E Spiral Point Tap, TiN - Walter-Prototyp 7606585
MFR# 7606585Series TC216
$27.79List $35.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-20
CoatingTiN
Description

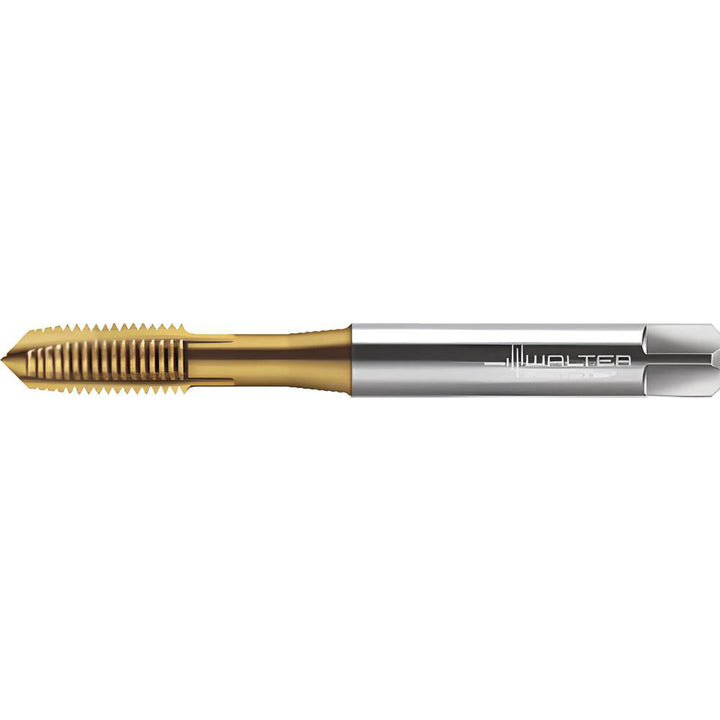

The Walter-Prototyp 7606585 is a 1/4-20 UNC HSS-E Spiral Point tap with a TiN finish. 3 flutes.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Class of fit2B
Coating finishTiN
Coolant throughNo
Interrupted threadNo
MaterialHSS-E
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal
Material gradeWY80AA
Neck length0.5900
Number of flutes3
Overall length3.1496
OversizeNo
Shank diameter0.2559
Square size (mm)4.85
StyleSpiral Point
Threads per inch20
Thread directionRight Hand
Thread length0.5910
Thread pitch0.05
Thread size in1/4-20
Thread standardUNC
