Walter-Titex

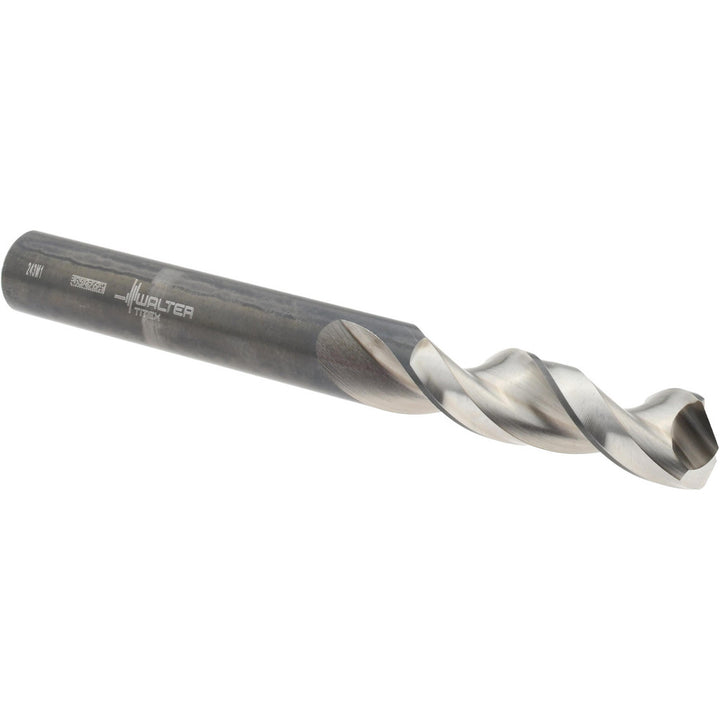

23/64" Vanadium High Speed Steel Drill Bit, 130° point - Walter-Titex 5057171
MFR# 5057171Series A1148
$30.75List $37.48
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size23/64
Description
The Walter-Titex 5057171 is a 23/64" Vanadium High Speed Steel drill bit, 130° point. Suited for aluminum alloy, aluminum silicon alloy, brass, copper alloy, stainless steel, steel. 1-9/16 flute length, 3-5/16 overall length. Series A1148.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance-0.00087 to 0.00000 in; -0.022 to 0.000 mm
Drill bit gradeHigh Performance
Drill bit size in23/64
Drill bit size range0.3500 to 0.4000
Drill point angle130
Flute length in1-9/16
Flute typeParabolic
Overall length in3-5/16
Point typeSplit
Primary workpiece materialAluminum Alloy; Aluminum Silicon Alloy; Brass; Copper Alloy; Stainless Steel; Steel
Shank typeStraight-Cylindrical
Specification designationBS; DIN
Tool materialVanadium High Speed Steel
Web configurationTapered
Web thinningWeb-Thinned
