Walter-Titex

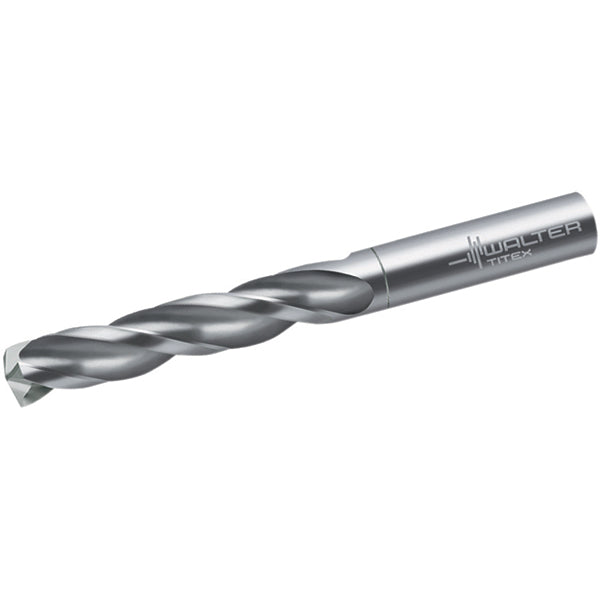

0.4921" Solid Carbide Screw Machine Drill Bit, 150° point - Walter-Titex 5057811
MFR# 5057811Series A1166
$291.64List $297.00
Save 1%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Description
The Walter-Titex 5057811 is a 0.4921" Solid Carbide Screw Machine drill bit, 150° point. Series A1166.
Specifications
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh7
Drill bit size0.4921
Drill bit size range0.4500 to 0.5000
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0659
Flute by diameter ratio3xD
Flute length2.5591
Flute typeSpiral
Material gradeK30F
Maximum drilling depth2.0079
Number of flutes3
Overall length4.0158
Point typeMaximiza
Shank diameter0.4921
Shank length1.4567
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6539
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceGeneral Purpose
Web configurationTapered
Web thinningWeb-Thinned
