Walter-Titex

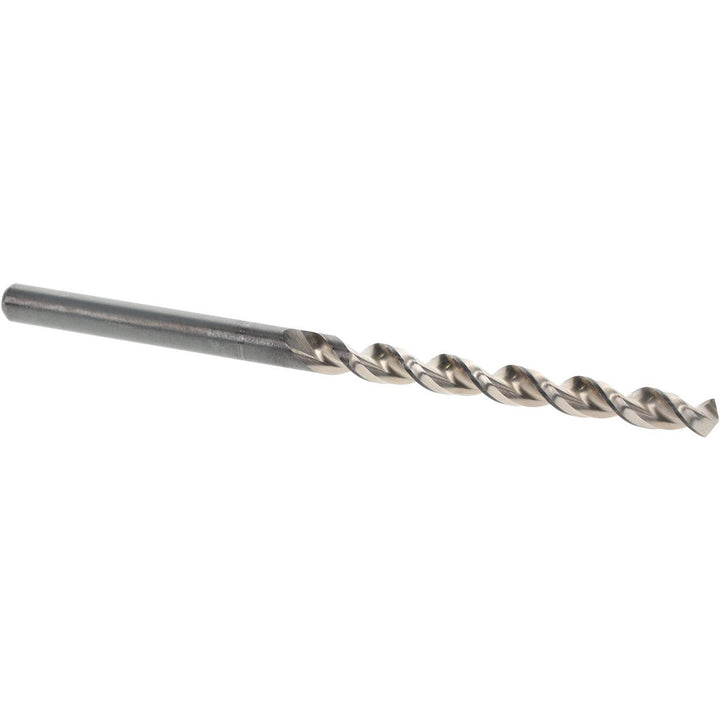

#22 High Speed Steel Drill Bit, Oxide, 130° point - Walter-Titex 5059363
MFR# 5059363
$9.13List $11.11
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingOxide
Description
The Walter-Titex 5059363 is a #22 High Speed Steel drill bit with a Oxide finish, 130° point. 1-11/16 flute length, 2-15/16 overall length.
Specifications
Coating finishOxide
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeHigh Performance
Drill bit materialHigh Speed Steel
Drill bit size0.1570
Drill bit size range0.1500 - 0.2000
Drill bit size wire#22
Drill point angle degrees130
Flute length in1-11/16
Flute typeParabolic
Overall length in2-15/16
Point typeStandard
Shank diameter0.1570
Shank typeStraight-Cylindrical
Specification designationBS; DIN
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
Alternate & equivalent tools
Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
