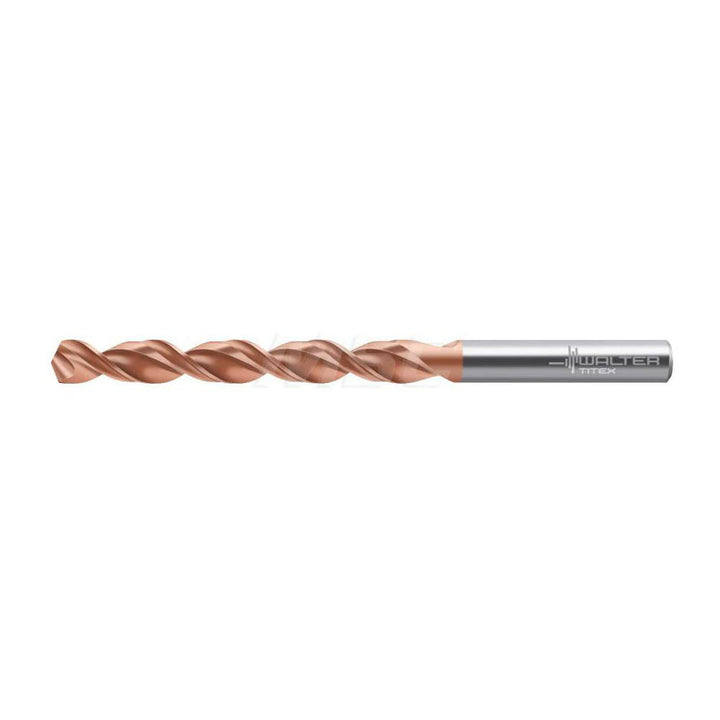

0.2283" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5236564

Walter-Titex

0.2283" Cobalt Drill Bit, AlCrN, 130° point - Walter-Titex 5236564

MFR# 5236564Series A1249XPL

$31.72List $38.67 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingAlCrN

Description

The Walter-Titex 5236564 is a 0.2283" Cobalt drill bit with a AlCrN finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1249XPL.

Specifications

Coating finishAlCrN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingAlCrN
Drill bit materialCobalt
Drill bit size0.2283
Drill bit size range0.2000 - 0.2500
Drill point angle degrees130
Drill point length0.0532
Flute by diameter ratio5xD
Flute length2.2441
Flute typeParabolic
Material gradeM35
Maximum drilling depth1.8898
Number of flutes2
Overall length3.6614
Point typeUFL
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.2283
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 338
StandardsANSI; ISO
Tool applicationBlind Hole; Stack Drilling
Tool performanceHigh Performance
Web configurationTapered
Web thinningWeb-Thinned
