Drill size11/32
Flutes2
CoatingCoated

Description

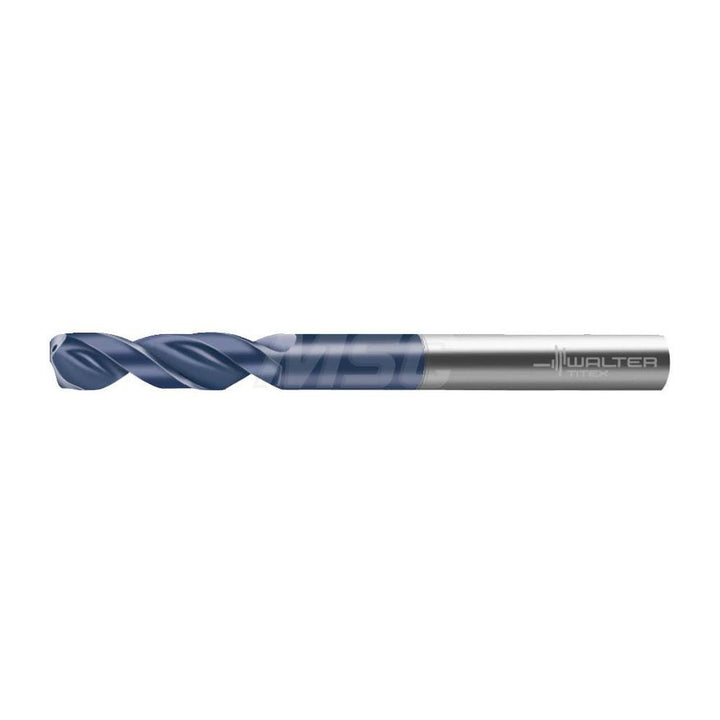

The Walter-Titex 5293778 is a 11/32" Solid Carbide Screw Machine drill bit with a Coated finish, 150° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A6181TFT.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancep7
Drill bit size in11/32
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle150
Drill point length0.0461
Flute by diameter ratio3xD
Flute length1.8504
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.0630
Number of flutes2
Overall length4.0551
Point typeForm V+A
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)10.00
Shank length1.5748
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 6535HA
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
