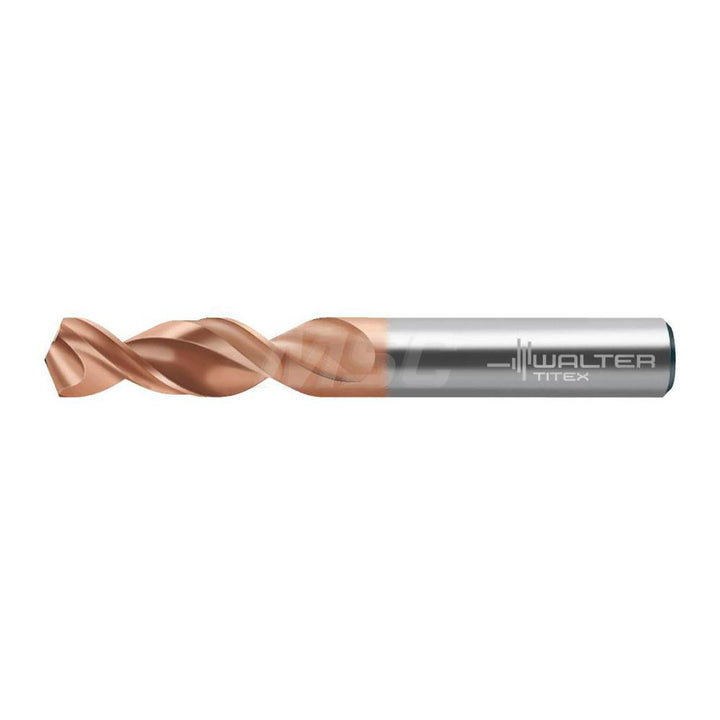

0.1495" Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337167

Walter-Titex

0.1495" Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337167

MFR# 5337167Series A1149XPL

$19.09List $23.23 Save 17%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 5337167 is a 0.1495" Cobalt Screw Machine drill bit with a Coated finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1149XPL.

Specifications

Coating finishCoated
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size0.1495
Drill bit size range0.1000 to 0.1500
Drill length typeScrew Machine
Drill point angle130
Drill point length0.0349
Flute by diameter ratio3xD
Flute length0.8661
Flute typeParabolic
Maximum drilling depth0.5906
Number of flutes2
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialCobalt
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
