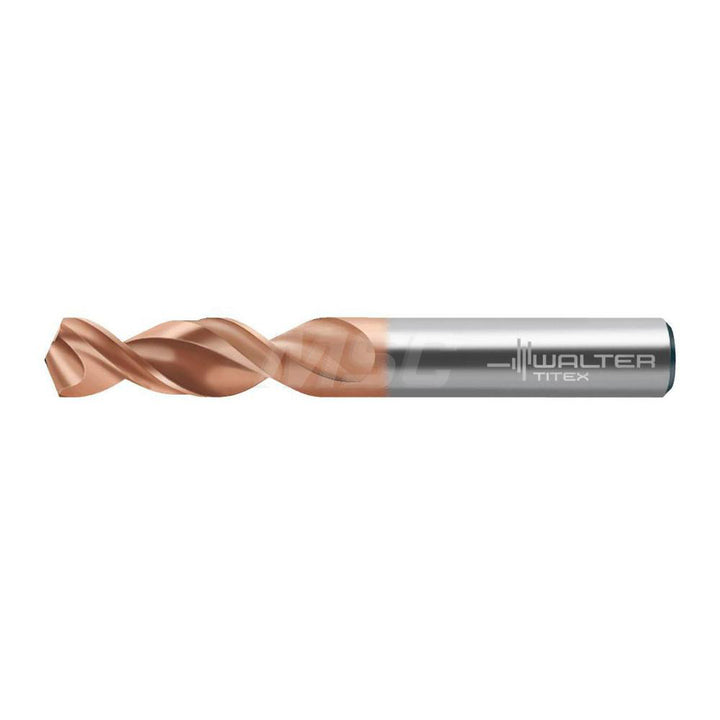

37/64" Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337254

Walter-Titex

37/64" Cobalt Screw Machine Drill Bit, Coated, 130° point - Walter-Titex 5337254

MFR# 5337254Series A1149XPL

$137.29List $172.10 Save 20%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size37/64
Flutes2
CoatingCoated

Description

The Walter-Titex 5337254 is a 37/64" Cobalt Screw Machine drill bit with a Coated finish, 130° point. Suited for cast iron, non-ferrous metal, stainless steel, steel. Series A1149XPL.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit size in37/64
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle130
Drill point length0.1350
Flute by diameter ratio3xD
Flute length2.2047
Flute typeParabolic
Material gradeM35
Maximum drilling depth1.6142
Number of flutes2
Overall length4.3701
Point typeForm V+U
Primary workpiece materialCast Iron; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter0.5781
Shank length2.1654
Shank typeStraight-Cylindrical
Specification designationDIN
Specification numberDIN 1897
StandardsDIN; ISO
Tool materialCobalt
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
