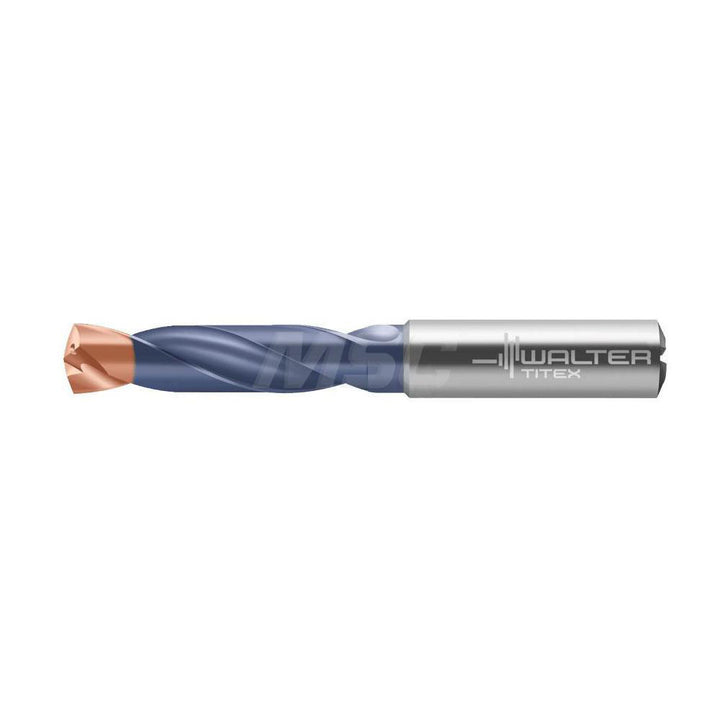

7/32" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 5537158

Walter-Titex

7/32" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 5537158

MFR# 5537158Series A3289DPL

$143.37List $159.00 Save 9%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size7/32
Flutes2
CoatingCoated

Description

The Walter-Titex 5537158 is a 7/32" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, stainless steel, steel. Series A3289DPL.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in7/32
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0398
Drill tip finish coatingDouble Coating
Flute by diameter ratio3xD
Flute length1.1024
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeX-treme Plus
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Stainless Steel; Steel
Shank diameter (mm)6.00
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
Web configurationTapered
Web thinningWeb-Thinned
