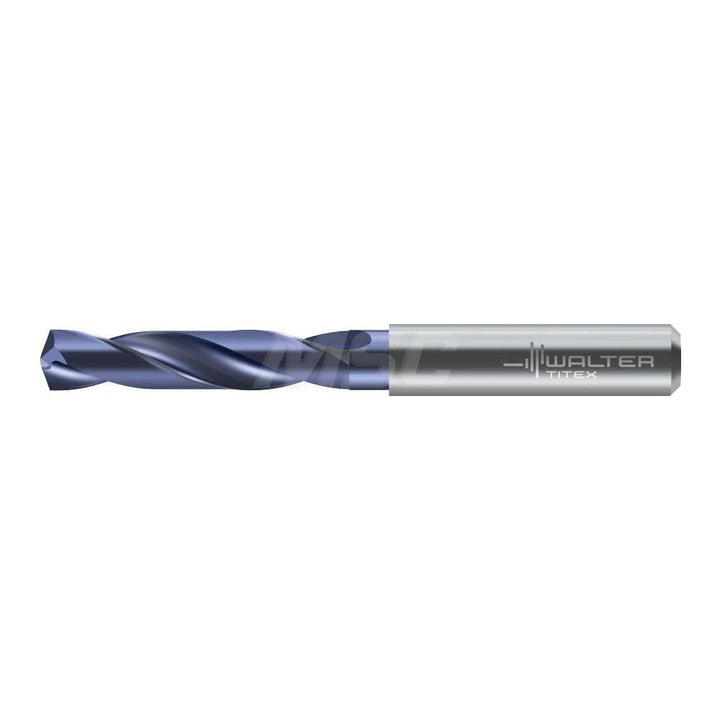

13/64" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6618086

Walter-Titex

13/64" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6618086

MFR# 6618086Series DC150-03-A0

$51.17List $65.62 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size13/64
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618086 is a 13/64" Solid Carbide Screw Machine drill bit with a TiNAl finish, 140° point. Suited for steel, cast iron. 39/64 flute length, 3 overall length. Series DC150-03-A0.

Specifications

Coating finishTiNAl
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in13/64
Drill bit size range0.2000 to 0.2500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0370
Flute by diameter ratio3xD
Flute length in39/64
Flute typeRegular Spiral
Maximum drilling depth0.6090
Number of flutes2
Overall length in3
Point typeSpecial
Primary workpiece materialSteel; Cast Iron
Shank diameter0.2360
Shank length1.4173
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
