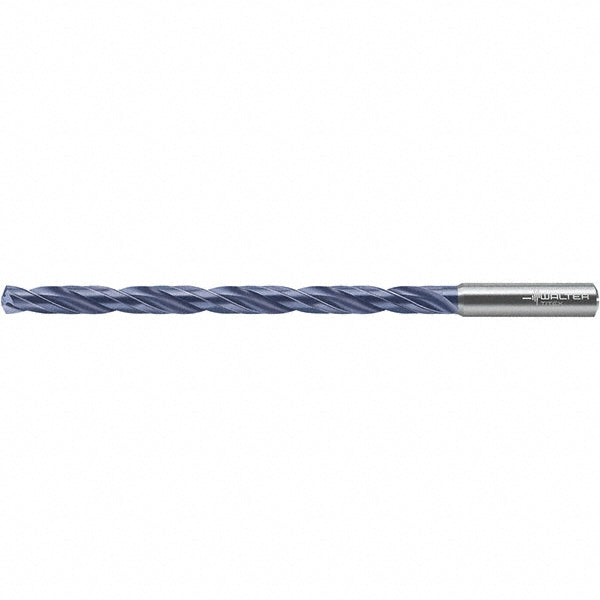

1/8" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618749

Walter-Titex

1/8" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618749

MFR# 6618749Series DC150-12-A1

$162.96List $201.97 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/8
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618749 is a 1/8" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cobalt, iron, nickel, titanium alloy. Series DC150-12-A1.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in1/8
Drill point angle140
Drill point length0.0230
Flute by diameter ratio12xD
Flute length2.1260
Maximum drilling depth1.8900
Number of flutes2
Overall length3.6220
Primary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
