Walter-Titex

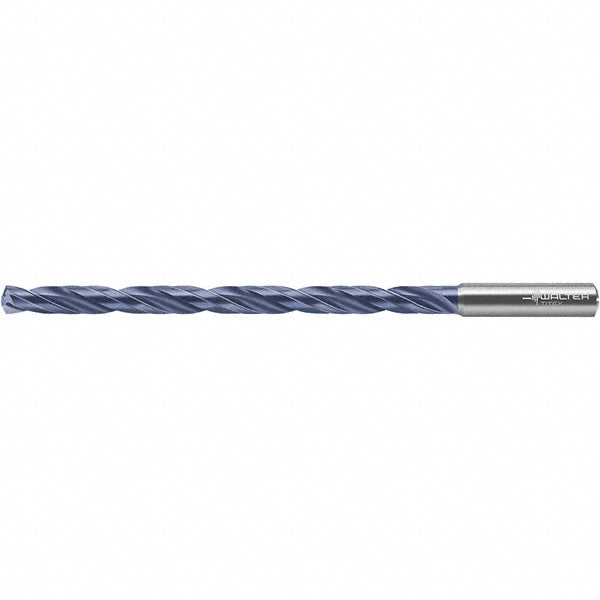

0.1719" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618764
MFR# 6618764Series DC150-12-A1
$162.96List $201.97
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiNAl
Description
The Walter-Titex 6618764 is a 0.1719" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cobalt, iron, nickel, titanium alloy. Series DC150-12-A1.
Specifications
Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.1719
Drill point angle140
Drill point length0.0310
Flute by diameter ratio12xD
Flute length2.5200
Maximum drilling depth2.2050
Number of flutes2
Overall length4.0160
Primary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.2360
Shank length1.4170
Shank typeStraight-Cylindrical
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
