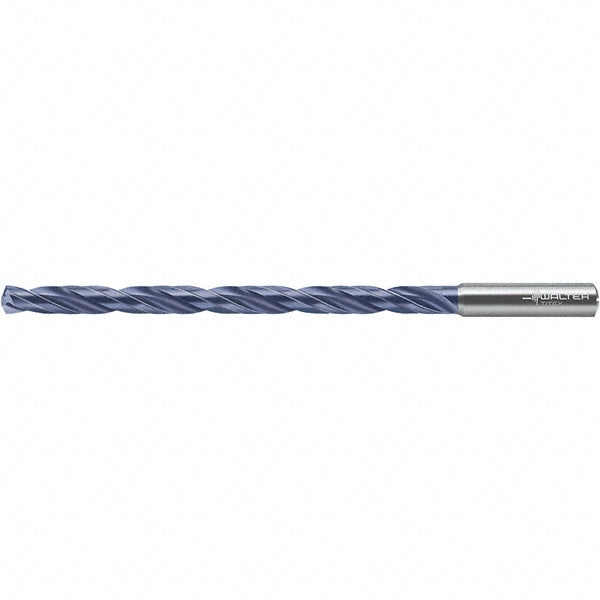

3/8" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618823

Walter-Titex

3/8" Solid Carbide Drill Bit, TiNAl, 140° point - Walter-Titex 6618823

MFR# 6618823Series DC150-12-A1

$228.40List $254.88 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/8
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6618823 is a 3/8" Solid Carbide drill bit with a TiNAl finish, 140° point. Suited for cobalt, iron, nickel, titanium alloy. Series DC150-12-A1.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in3/8
Drill point angle140
Drill point length0.0680
Flute by diameter ratio12xD
Flute length5.4330
Maximum drilling depth4.8430
Number of flutes2
Overall length7.0870
Primary workpiece materialCobalt; Iron; Nickel; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.3940
Shank length1.5750
Shank typeStraight-Cylindrical
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
