Walter-Titex

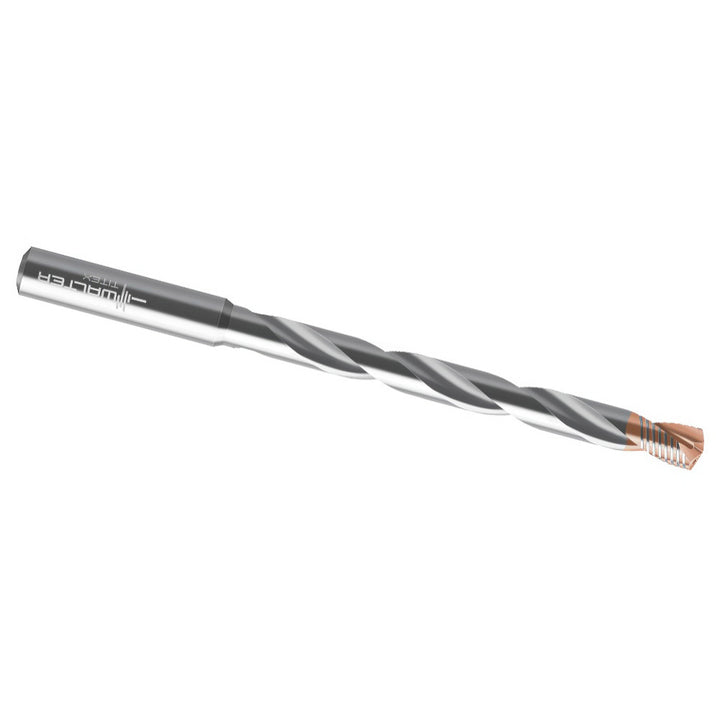

9/16" Solid Carbide Drill Bit, Coated, 140° point - Walter-Titex 6745436
MFR# 6745436Series DC170
$877.82List $1,067.08
Save 17%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size9/16
CoatingCoated
Description
The Walter-Titex 6745436 is a 9/16" Solid Carbide drill bit with a Coated finish, 140° point. Series DC170.
Specifications
Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in9/16
Drill point angle degrees140
Drill point length0.1024
Flute length5.9843
Flute length x diameter ratio8xD
Flute typeSpiral
Material applicationCast Iron; Steel
Maximum drilling depth5.3540
Overall length8-1/32
Shank diameter in5/8
Shank length in1-57/64
Shank typeParallel
StandardsDIN 6535 HA
Threaded shankNo
Tool applicationBlind Hole; Cross Hole; Inclined Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
