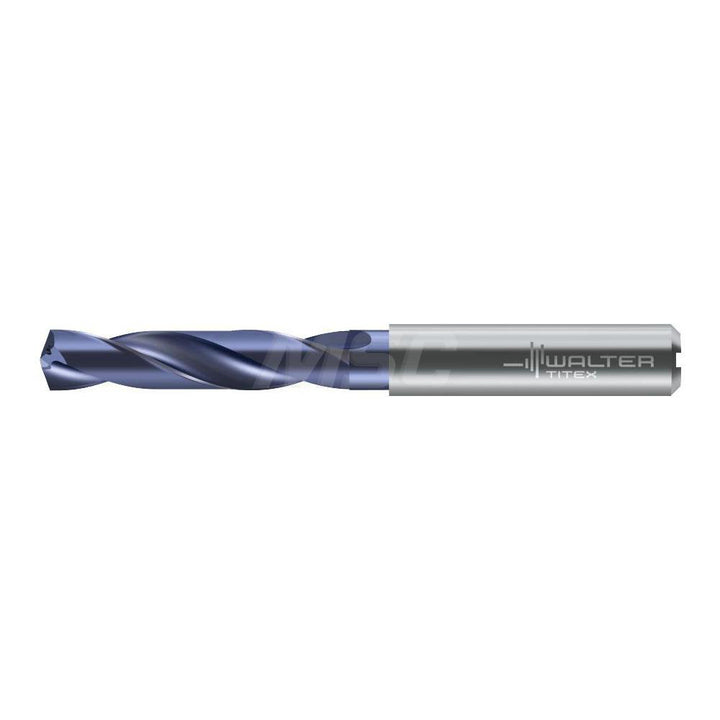

0.5197" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6968858

Walter-Titex

0.5197" Solid Carbide Screw Machine Drill Bit, TiNAl, 140° point - Walter-Titex 6968858

MFR# 6968858Series DC150-03-A1

$159.91List $205.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiNAl

Description

The Walter-Titex 6968858 is a 0.5197" Solid Carbide Screw Machine drill bit with a TiNAl finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC150-03-A1.

Specifications

Coating finishTiNAl
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.5197
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0950
Drill tip finish coatingTiNAl
Flute by diameter ratio3xD
Flute length2.3620
Flute typeRegular Spiral
Maximum drilling depth1.6930
Number of flutes2
Overall length4.2130
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.5510
Shank length1.7700
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal
