Walter-Titex

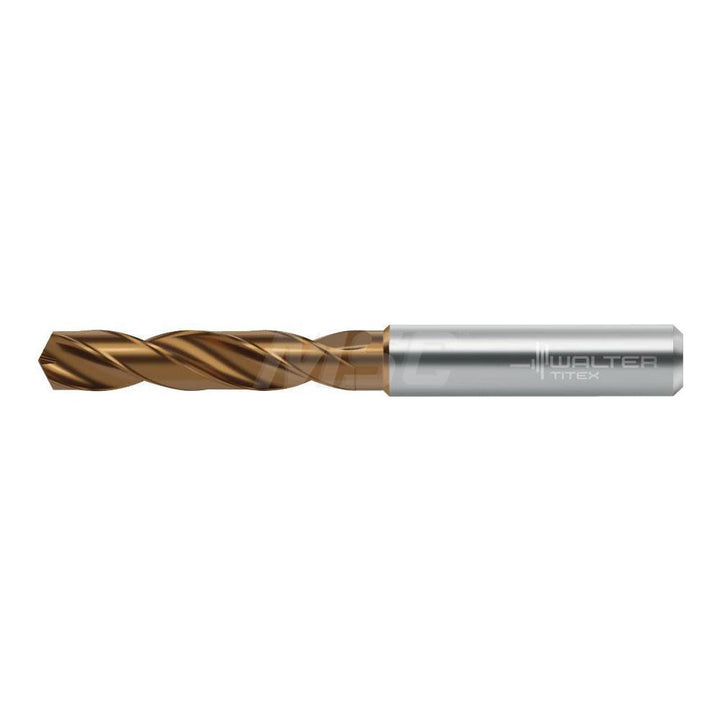

Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7377135
MFR# 7377135Series DC160
$108.92List $135.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingCoated
Description
The Walter-Titex 7377135 is a Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, steel. Series DC160.
Specifications
Coating finishCoated
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size range0.2500 to 0.3000
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.20
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeSpiral
Maximum drilling depth (mm)24.00
Number of flutes2
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
