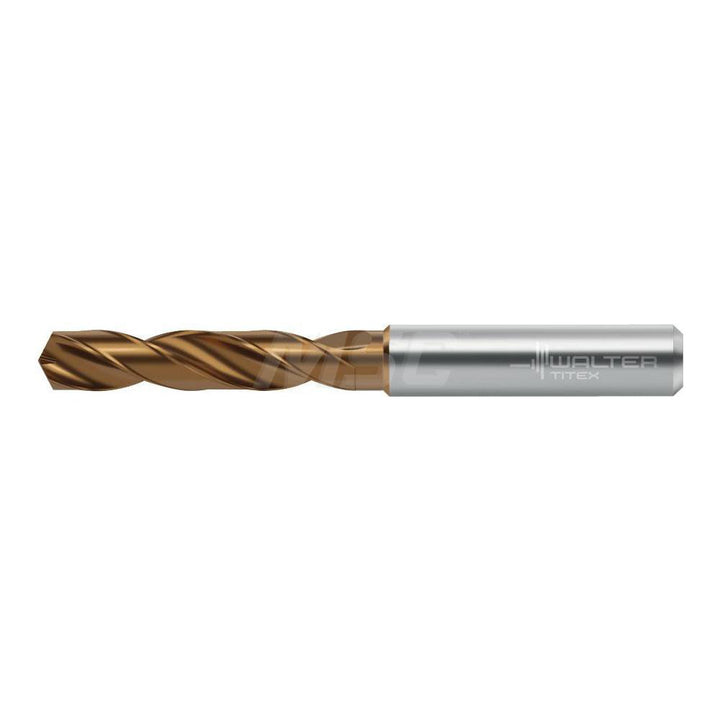

21/64" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7377177

Walter-Titex

21/64" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7377177

MFR# 7377177Series DC160

$126.67List $157.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size21/64
Flutes2
CoatingCoated

Description

The Walter-Titex 7377177 is a 21/64" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, steel. Series DC160.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in21/64
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle140
Drill point length (mm)1.52
Flute by diameter ratio3xD
Flute length (mm)47.00
Flute typeSpiral
Maximum drilling depth (mm)35.00
Number of flutes2
Overall length3.5039
Point typeX treme Evo
Primary workpiece materialCast Iron; Steel
Shank diameter0.3937
Shank length1.5800
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
