Walter-Titex

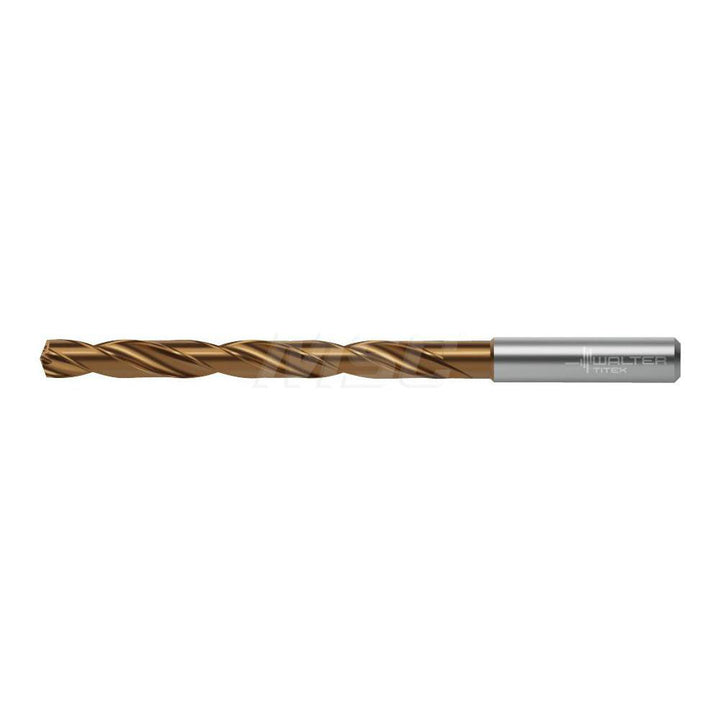

0.1772" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7377838
MFR# 7377838Series DC160
$217.84List $270.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiSiAlCrN
Description
The Walter-Titex 7377838 is a 0.1772" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Series DC160.
Specifications
Coating finishTiSiAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.1772
Drill point angle degrees140
Drill point length (mm)0.82
Flute length (mm)45.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth1.4570
Overall length (mm)85.00mm
Shank diameter (mm)6.00mm
Shank length (mm)37.00mm
Shank typeParallel
StandardsDIN 6537 K
Threaded shankNo
Tool applicationBlind Hole; Cross Hole; Inclined Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
Tool performanceHigh Performance
