Walter-Titex

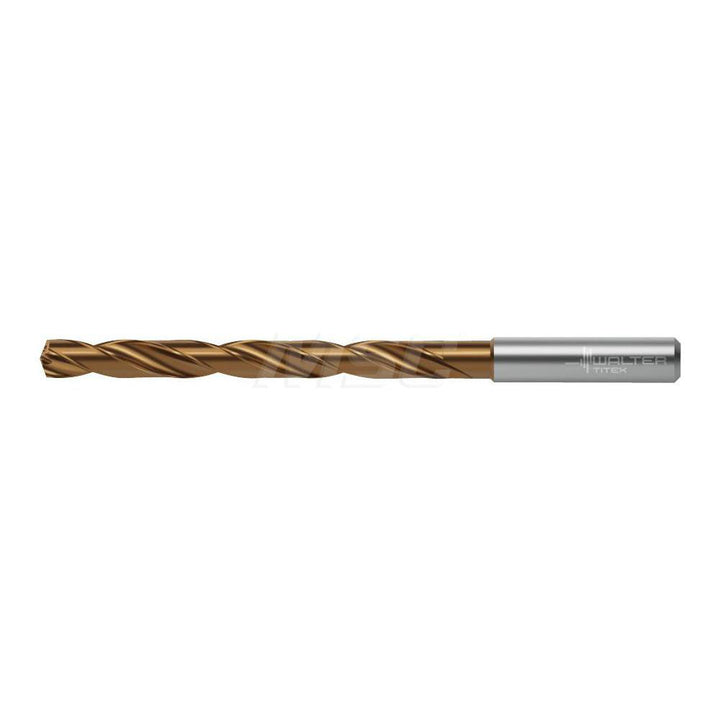

5/16" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7377881
MFR# 7377881Series DC160
$261.41List $324.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
CoatingTiSiAlCrN
Description
The Walter-Titex 7377881 is a 5/16" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Series DC160.
Specifications
Coating finishTiSiAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in5/16
Drill point angle degrees140
Drill point length (mm)1.45
Flute length (mm)76.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth2.5200
Overall length (mm)116.00mm
Shank diameter (mm)8.00mm
Shank length (mm)64.00mm
Shank typeParallel
StandardsDIN 6537 K
Threaded shankNo
Tool applicationBlind Hole; Cross Hole; Inclined Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
Tool performanceHigh Performance
