Walter-Titex
5/8" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7377944
MFR# 7377944Series DC160
$740.66List $918.00
Save 19%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/8
CoatingTiSiAlCrN
Description

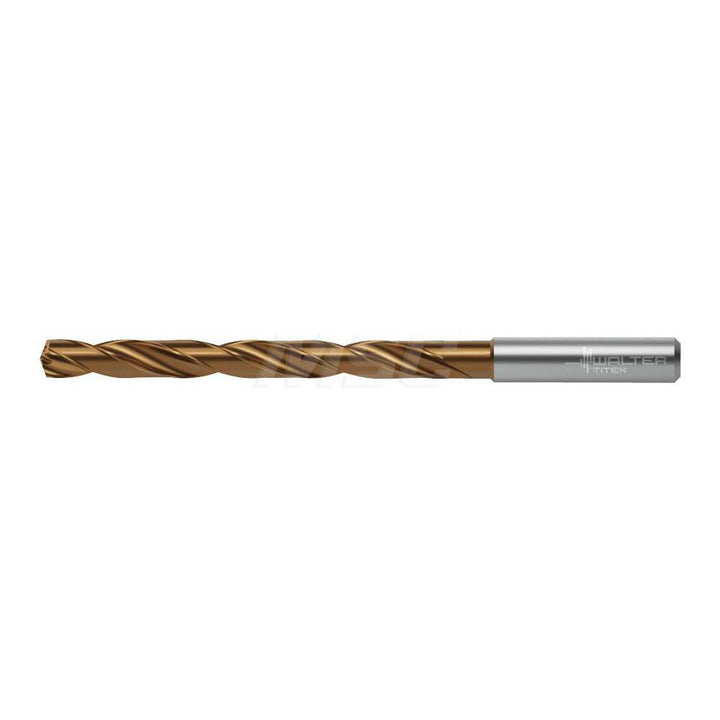

The Walter-Titex 7377944 is a 5/8" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Series DC160.
Specifications
Coating finishTiSiAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in5/8
Drill point angle degrees140
Drill point length (mm)2.89
Flute length (mm)152.00
Flute length x diameter ratio8xD
Flute typeSpiral
Material gradeWJ30ET
Maximum drilling depth5.3540
Overall length (mm)204
Shank diameter (mm)16.00
Shank length (mm)136.00
Shank typeParallel
StandardsDIN 6537 K
Threaded shankNo
Tool applicationBlind Hole; Cross Hole; Inclined Hole; Stack Drilling; Through Hole Drilling
Tool materialSolid Carbide
Tool performanceHigh Performance
