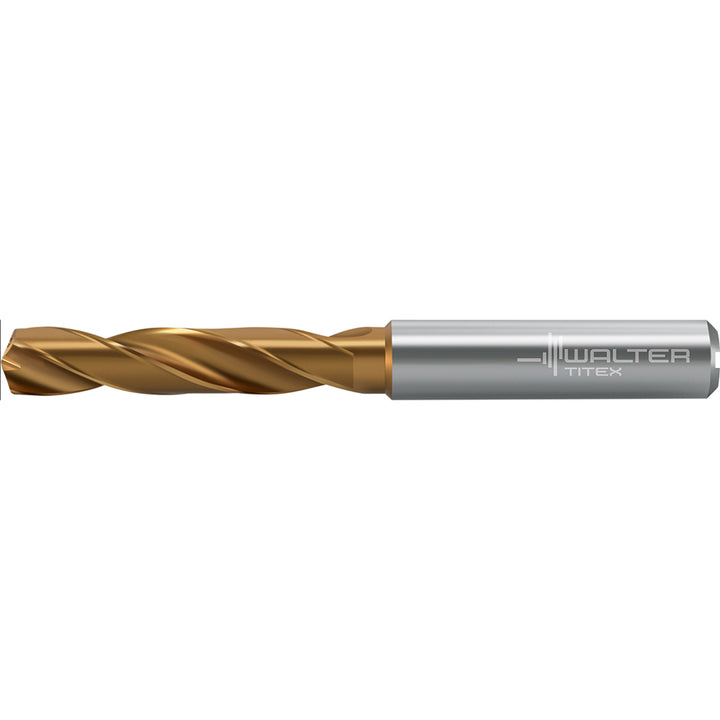

0.2126" Solid Carbide Drill Bit, Coated, 140° point - Walter-Titex 7378123

Walter-Titex

0.2126" Solid Carbide Drill Bit, Coated, 140° point - Walter-Titex 7378123

MFR# 7378123Series A3299XPL

$117.73List $131.22 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 7378123 is a 0.2126" Solid Carbide drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series A3299XPL.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.2126
Drill bit size range0.2000 to 0.2500
Drill point angle140
Drill point length0.0387
Flute by diameter ratio3xD
Flute length1.1024
Flute typeSpiral
Material gradeK30F
Maximum drilling depth0.7874
Number of flutes2
Overall length2.5984
Point typeX-treme
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter0.2362
Shank length1.4173
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
Web configurationTapered
Web thinningWeb-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
