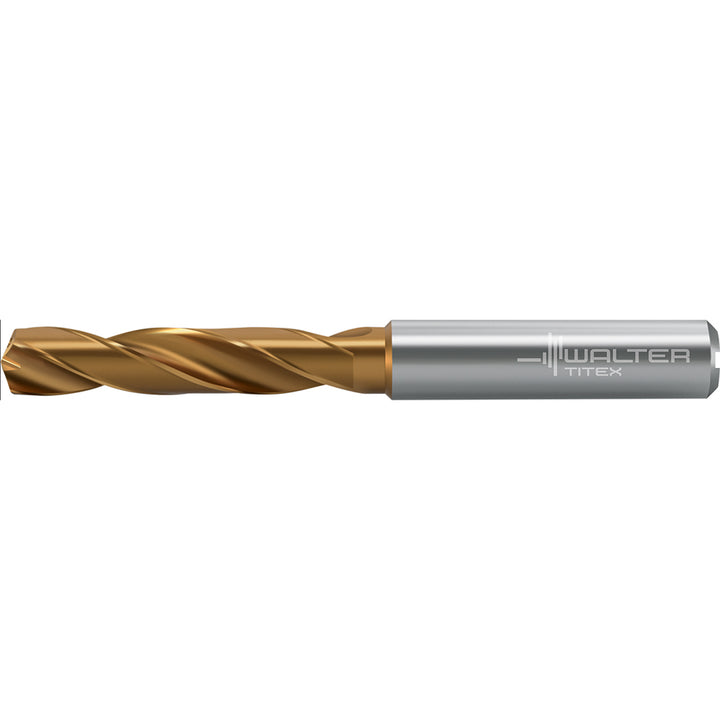

5/16" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378185

Walter-Titex

5/16" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378185

MFR# 7378185Series DC160-03-A1

$130.71List $162.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/16
Flutes2
CoatingMulti-layer

Description

The Walter-Titex 7378185 is a 5/16" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC160-03-A1.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size in5/16
Drill bit size range0.3000 to 0.3500
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0570
Flute by diameter ratio3xD
Flute length1.6140
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth1.1420
Number of flutes2
Overall length3.1100
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.3150
Shank length1.4170
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
