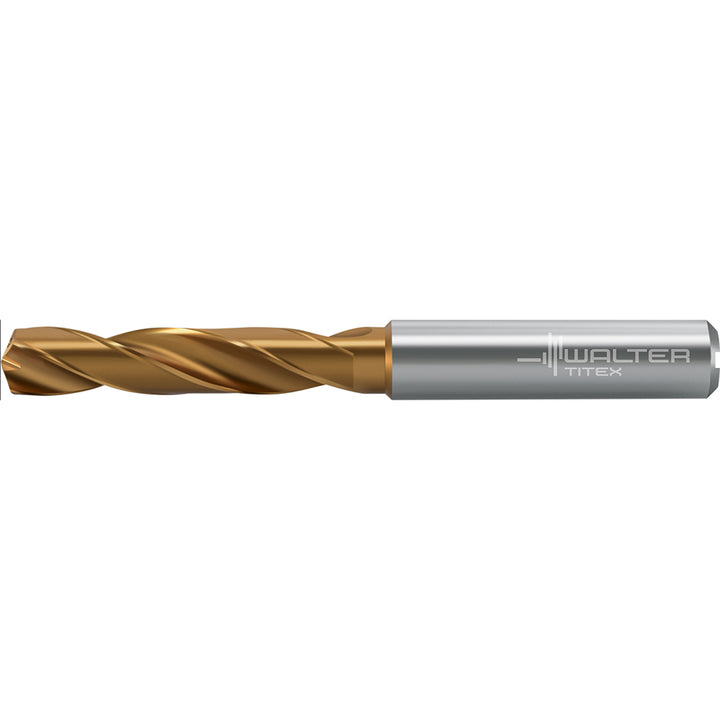

0.5354" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378318

Walter-Titex

0.5354" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7378318

MFR# 7378318Series A3299XPL

$283.19List $351.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 7378318 is a 0.5354" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, hard material, non-ferrous metal, steel. Series A3299XPL.

Specifications

Coating finishCoated
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.5354
Drill bit size range0.5000 to 0.6000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0974
Flute by diameter ratio3xD
Flute length2.3622
Flute typeSpiral
Material gradeK30F
Maximum drilling depth1.6929
Number of flutes2
Overall length4.2126
Point typeX-treme
Primary workpiece materialCast Iron; Hard Material; Non-Ferrous Metal; Steel
Shank diameter (mm)14.00
Shank length1.7717
Shank typeStraight-Cylindrical
Specification designationDIN
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
Web configurationTapered
Web thinningWeb-Thinned
