0.6102" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378355

Walter-Titex

0.6102" Solid Carbide Screw Machine Drill Bit, Multi-layer, 140° point - Walter-Titex 7378355

MFR# 7378355Series DC160-03-A1

$370.33List $459.00 Save 19%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingMulti-layer

Description

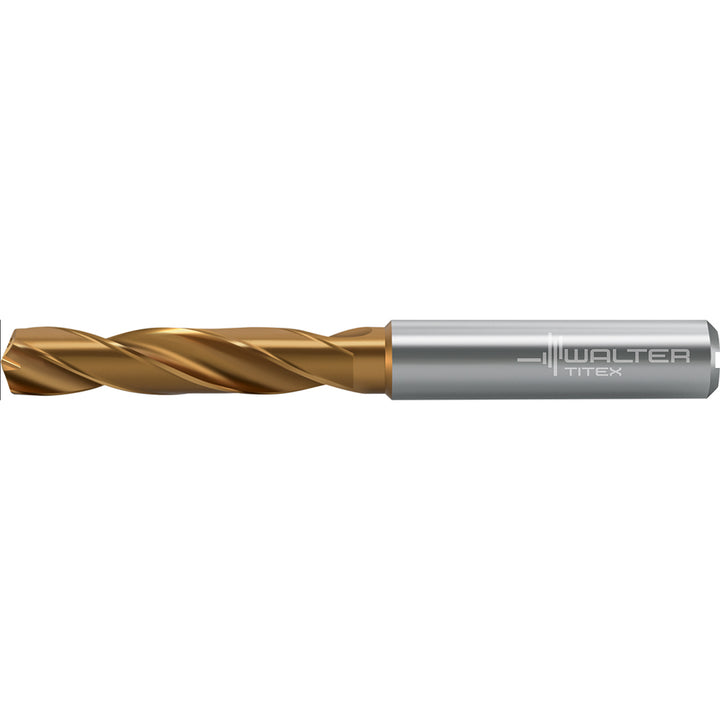

The Walter-Titex 7378355 is a 0.6102" Solid Carbide Screw Machine drill bit with a Multi-layer finish, 140° point. Suited for steel, cast iron, aluminum & non-ferrous, high-temp alloy. Series DC160-03-A1.

Specifications

Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.6102
Drill bit size range0.6000+
Drill length typeScrew Machine
Drill point angle140
Drill point length0.1110
Flute by diameter ratio3xD
Flute length2.5590
Flute typeRegular Spiral
Material gradeWJ30ET
Maximum drilling depth1.7720
Number of flutes2
Overall length4.5280
Point typeStandard
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous; High-Temp Alloy
Shank diameter0.6300
Shank length1.8900
Shank typeStraight
Spiral typeRegular
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
