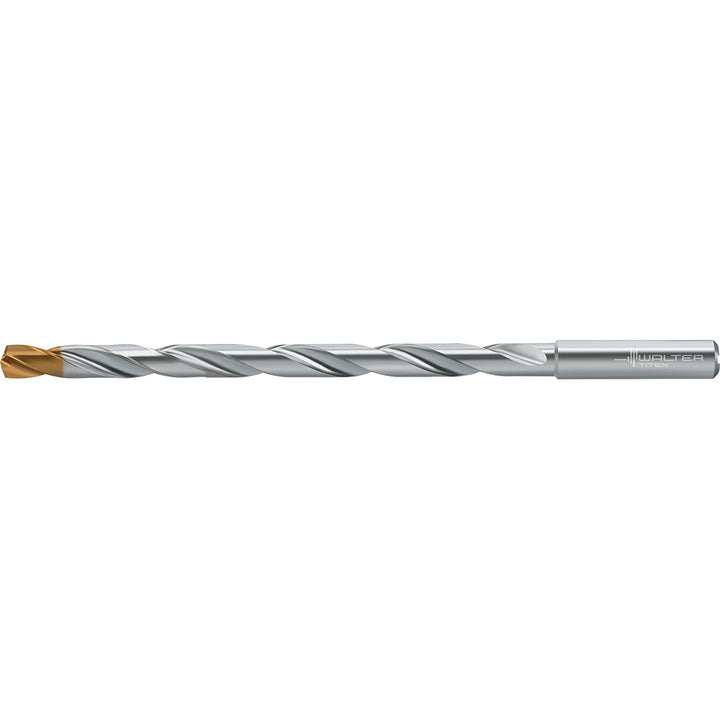

0.4331" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7378890

Walter-Titex

0.4331" Solid Carbide Drill Bit, TiSiAlCrN, 140° point - Walter-Titex 7378890

MFR# 7378890Series DC160-12-A1

$517.14List $576.38 Save 10%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiSiAlCrN

Description

The Walter-Titex 7378890 is a 0.4331" Solid Carbide drill bit with a TiSiAlCrN finish, 140° point. Suited for alloy, titanium alloy. Series DC160-12-A1.

Specifications

Coating finishTiSiAlCrN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.4331
Drill point angle140
Flute by diameter ratio12xD
Flute length6.2200
Maximum drilling depth5.5120
Number of flutes2
Overall length8.1100
Primary workpiece materialAlloy; Titanium Alloy
Secondary workpiece materialGlass; Graphite
Shank diameter0.4720
Shank length1.7720
Shank typeStraight-Cylindrical
StandardsANSI; DIN 6535 HA; ISO
Tool applicationBlind Hole; Cross Hole; Inclined Hole Exit; Stack Drilling
Tool materialSolid Carbide
