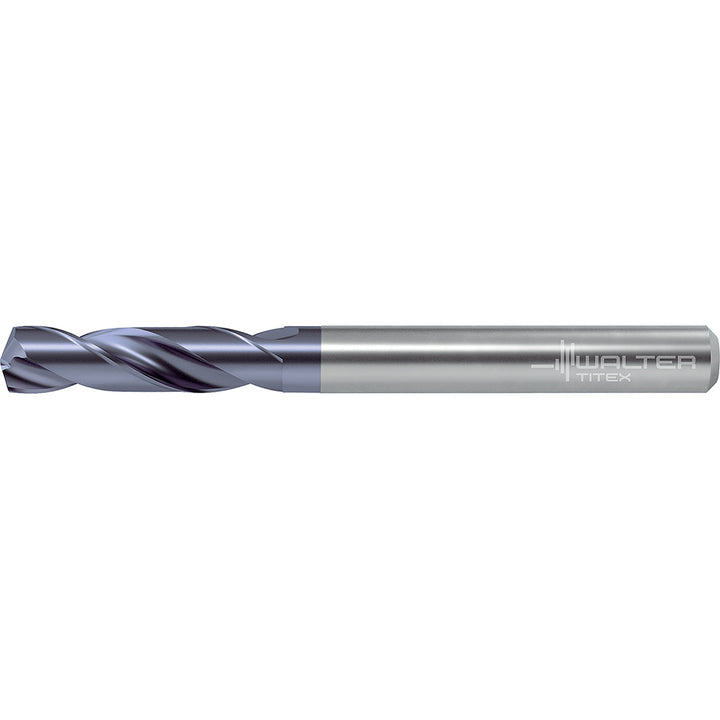

0.0591" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7781104

Walter-Titex

0.0591" Solid Carbide Screw Machine Drill Bit, Coated, 140° point - Walter-Titex 7781104

MFR# 7781104Series DC160-03-F1

$39.73List $50.96 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingCoated

Description

The Walter-Titex 7781104 is a 0.0591" Solid Carbide Screw Machine drill bit with a Coated finish, 140° point. Suited for cast iron, steel. Series DC160-03-F1.

Specifications

Coating finishCoated
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerancem7
Drill bit size0.0591
Drill bit size range0.0000 to 0.1000
Drill length typeScrew Machine
Drill point angle140
Drill point length0.0110
Flute by diameter ratio3xD
Flute length0.3540
Material gradeWJ30RE
Maximum drilling depth0.2360
Number of flutes2
Overall length1.26000
Primary workpiece materialCast Iron; Steel
Shank typeStraight-Cylindrical
StandardsDIN; ISO
Tool materialSolid Carbide
Tool performanceUniversal Advance
